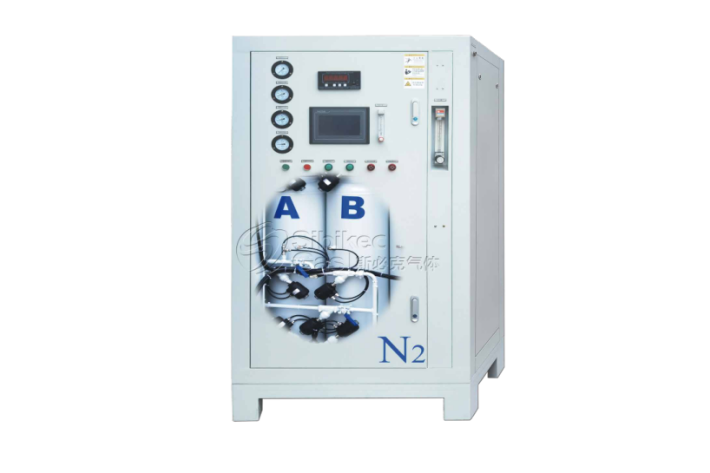

SPN Series Nitrogen Generator

Quantity:
Availability:





Inquire Add to Basket

Cryogenic Equipment Cryogenic Vacuum Pipes Hydrogen Generation Plant Nitrogen Generation Plant Nitrogen Purification System

Products

Product Description

SPN series box-type Nitrogen generator is an optimization and improvement of small models based on PSA Nitrogen generator, with compact structure, small floor area, simple installation and plug and play. The nitrogen production process has the advantages of simple flow, high degree of automation, fast gas production, low energy consumption, nitrogen purity can be adjusted in a large range according to user needs, convenient operation and maintenance, low operation cost, and strong adaptability of the device.

Technical Specifications

Model Nm³/hr.	Nitrogen purity					DN mm	DN mm	kg	LWH mm
Model Nm³/hr.	99%	99.5%	99.9%	99.99%	99.999%	DN mm	DN mm	kg	LWH mm
SPN-1D	3.5	3	2	1.5	1	G1/2	G1/2	180	800x650x1240
SPN-2D	8	6	5	3	1.5	G1/2	G1/2	300	800x650x1720
SPN-1Q	7	5	4	2.5	1.5	G1/2	G1/2	300	900x480x1720
SPN-2Q	13	10	8	5	3	G1/2	G1/2	350	900x480x1720
SPN-3Q	20	17	15	8	5	G1/2	G1/2	400	900x480x1720
SPN-4Q	30	25	20	10	7	G3/4	G1/2	500	1200x620x1870
SPN-5Q	40	35	25	15	10	G3/4	G1/2	700	1200x620x1870
SPN-6Q	60	45	35	20	15	G3/4	G1/2	850	1200x620x1870
SPN-7Q			45	30	20	G1	G3/4	1200	2000x800x2200
SPN-8Q			60	50	25	G1	G3/4	1400	2250x1000x2200
SPN-9Q			75	60	30	G1	G3/4	1550	2250x1000x2200
SPN-10Q			100	80	40	G1	G3/4	1650	2250x1000x2200
